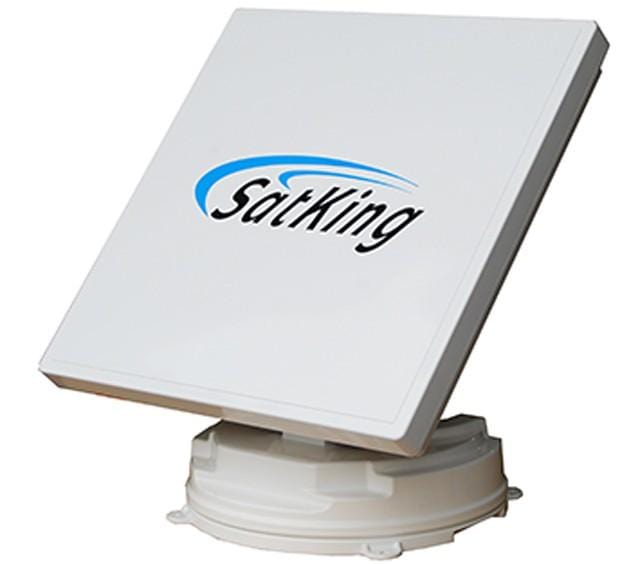

SatKing Promax Pro Max Plus Auto Sat Dish with Custom Plate

Product Description


NEW MODEL PROMAX PLUS - TRIPLE LNB AND BLUETOOTH APP CONTROL

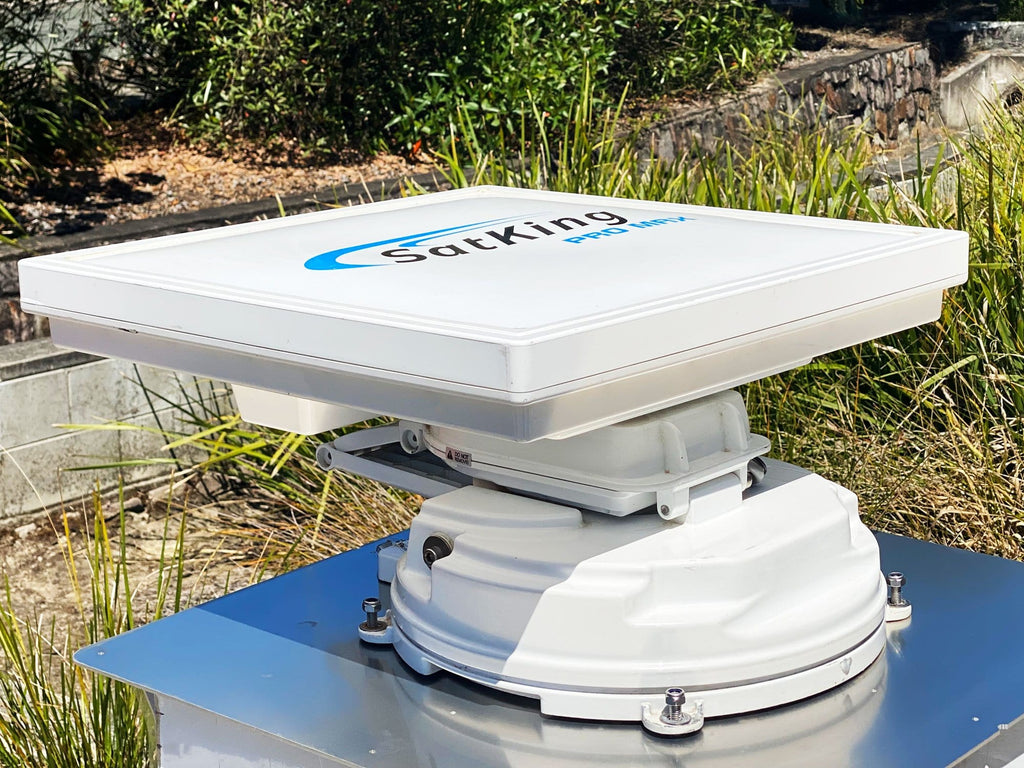

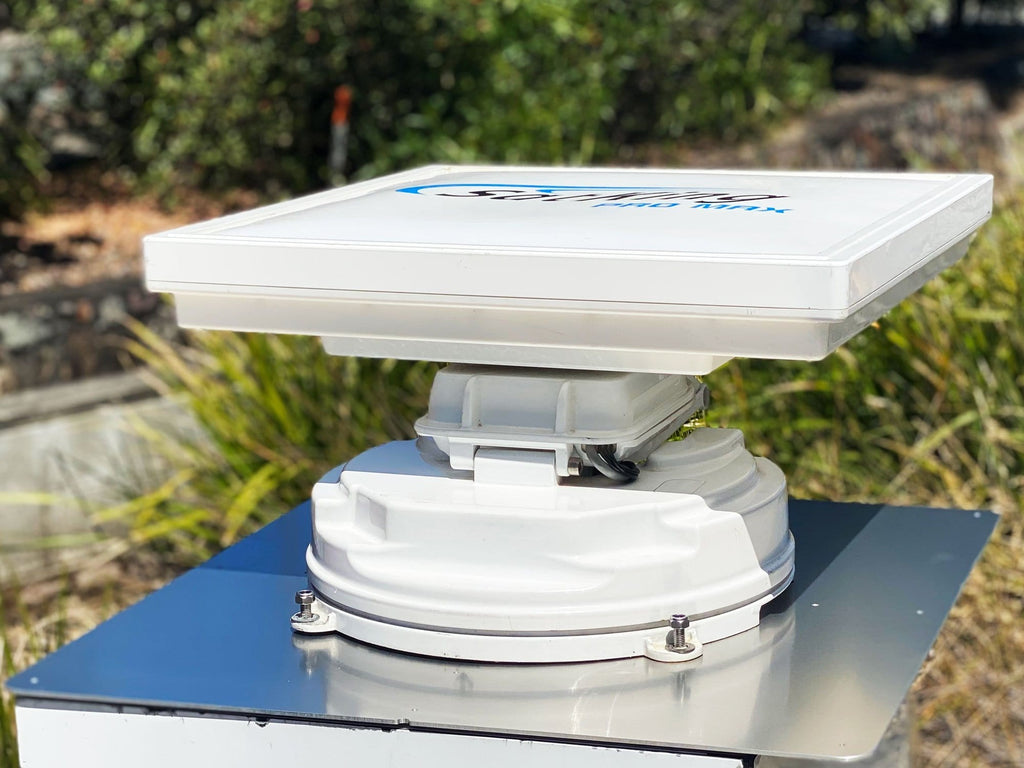

Promax automatic satellite dish with custom made aluminium 590mm plate exclusive to SatPlus Australia.

EXCLUSIVE SATPLUS DEAL - Best price in Australia and now includes a FREE Australian made custom 3mm aircraft grade aluminium mounting plate measuring 590mm x 590mm valued at $155.  This plate is intended to spread the load of the Promax as it weighs 20.7KG on the roof.  The standard plate included with the Promax is circular and measures 410mm diameter which is only marginally larger than the actual base of the system.  This puts a fair amount of load directly on this smaller area and for many caravans, this is inadequate.  The large 590mm square plate solves this issue and makes the Promax suitable for mounting on most vans without the need to strengthen the roof. The plate has 4 x 8mm pressed studs ready to fit the Promax straight to the plate.  Then it's just a case of fixing the system to the roof using Sikaflex and if necessary screwing down on the 4 corners (not required for composite roof construction).

RRP of Promax is $3995 and custom made mounting plate is $155.  Save a whopping $355.00 and only through SatPlus Australia.

FLAT RATE SHIPPING OF $40 ANYWHERE IN AUSTRALIA

Relax watching your favourite footy team or keep your partner content watching her favourite shows with a glass of wine in hand.  Perfect satellite digital TV reception in most of Australia.





  • Fully automatic self aligning
  • Pre-Programmed to receive VAST and Foxtel/Austar (subscription required for Foxtel)
  • Flat panel design offers compact size with high performance
  • 3x output LNB as standard
  • Built in GPS to find satellites fast
  • Bluetooth via mobile app
  • Last position memory to save on search times
  • Suitable for Caravan, motorhome, motor vehicle and camping use
  • Automatic retraction upon vehicle start up or if you exceed 10KPH
  • Automatic LNB skew
  • Powerful DC motor with metal gears
  • Can be self installed, detailed instructions and roof mount included
  • 3 Year warranty
  • Made for harsh Australian conditions
  • Made and designed in Korea



  • Physical specifications:  520mm x 600mm x 246mm
  • Weight: 20.7KG
  • Height when closed - 280mm
  • Operating temp range: -30 degrees C to +60 degrees C
  • Elevation: 5 to 90 degrees
  • Azimuth 390 degrees
  • Search Time: 120 seconds (average)
  • Last Position Search Time - 20 seconds (average)
  • Power: 12 or 24VDC
  • Power Consumption: 84 watts in search mode



  • 1 x Flat antenna
  • 1 x Vehicle roof mounting kit
  • 1 x Controller
  • 1 x DC Power cable
  • 1 x Instruction booklet
  • 1 x 590mm Custom Aluminium Mounting Plate

The Altech 4921/5000 VAST decoder is an unusual shape and has no mounting holes to mount under a shelf or vertically inside a cupboard. For these reasons, we offer 2 mounting options:

  • Under shelf (or vertically mounted) shelf bracket
  • Integrated TV bracket which attaches the VAST box to your TV

Under shelf bracket: Custom made aluminium mounting shelf bracket to suit Altech UEC 4921/5000 PVR ready & PVR satellite decoders. Two piece design locks the decoder in place whether mounted horizontally, vertically or even upside down.  Made specifically for the Altech 4921/5000 PVR and PVR ready models only.  Will not suit other VAST decoders.

PLEASE NOTE THE PHOTOGRAPHS SHOW THE BRACKETS IN POWDER-COATED BLACK. WE NOW ONLY OFFER THESE IN RAW ALUMINIUM.

Easy to install and gives a professional look to complete your installation.



Integrated TV bracket:

Already mount your TV on a TV wall bracket? Not sure if you have space to mount your new Altech VAST box? Want to keep the installation clean and tidy from messy cabling? You take the TV off the TV support bracket while travelling anyway so why not have the Altech VAST box mounted permanently on the back of the TV?  What a great integrated solution.

Our SatPlus  4921/5000 integrated TV bracket is the perfect solution that:

  • keeps the decoder protected at the back of the TV while travelling
  •  offers a discreet mounting option
  • integrates the box into the TV
  • fits all 15 - 24" TV's with 75mm or 100mm VESA mounting holes
  • can be rotated to suit all brands of TV depending on the TV connection socket positions
  • utilising the 4921 IR sensor, decoder operations are controlled by pointing the remote control at the sensor eye on the front of the TV
  • minimises cable connect/disconnect.
  • provides an ideal mounting option when there is no other alternative
  • looks aesthetically better

    Installation is easy. Simply remove the head of your exisiting TV bracket from the back of your TV, place the SatPlus 4921 bracket plate over the 4 existing mounting holes and bolt your TV bracket head back to the TV.



      Unlike a traditional roof mounted satellite dish, the SatKing Promax utilises an advanced reception antenna array.  This has several advantages:

      • No large metal dish reflector thus dramatically reducing wind load and strain on the caravan roof
      • No long LNB support arm out the front that can foul on nearby objects like air conditioners and vents.
      • No loss of picture in heavier winds
      • Much less room required on the roof of the van (only 520mm x 520mm of free space required).  A traditional dish requires 1200mm x 1000mm of space.

      Fully automatic in every way, the SatKing Promax satellite system will lock onto the satellite in under a minute.  With the press of  two buttons the system will deploy and seek the strongest signal by fine tuning itself for maximum signal.  The new control box (IDU) features a digital display so just select your satellite (Optus D3/C1) and press OK.

      Featuring a twin output LNB, the SatKing Promax motorised satellite antenna is suitable for use with VAST, Foxtel (standard and IQ) as well as Austar (standard and MyStar) boxes.

      An added feature of the Promax is built in GPS.  The GPS unit not only enhances the search ability but also closes the dish to the home position should you drive off and forget to close it.  The motorised dish will automatically retract once the vehicle is travelling above 10Kph (the unit does require 12v or 24v power).

      Rugged build quality and steel gearbox and backed with a 3 year Australian warranty. The unit is made in Korea which is well known for producing high quality, high tech products.

      The SatKing ProMax automatic satellite dish comes with detailed instructions for self installation or we can arrange professional installation - please email us and we may be able to suggest a local installer.  In Melbourne and on the Sunshine Coast we have recommended installers available so please call.   You may wish to have the SatKing ProMax as standard equipment when you order your van, let your dealer know and we can ship direct to the manufacturer or dealer.

      Peace of mind, this unit is supported by SatPlus and we can assist with your initial set up and support you may require.  We've been in business since 2006 and have a sold reputation for exceptional customer service.


      $3,795.00
      Maximum quantity available reached.

      Customer Reviews

      Based on 3 reviews
      67%
      (2)
      33%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      P
      Peter townsend
      Sat King Pro

      Very happy with my Sat King Pro installation and it works really well as long as it’s not raining . Left Perth WA camped at Geraldton and the heavens opened up with real heavy rain and no problem with Sat King Pro reception , travelled another 600 Klms north to Carnarvon WA rained the first night and lost reception, next day was fine no problem with reception. Suppose I will just have to suck it up when it rains or does anyone had the problem and solved it

      Hi Peter and thank you for your review. Wet weather definitely has a negative impact on satellite reception, particularly when heading into remote WA as the satellite signal is already quite weak around there. You'll find as you get up to the Kimberley region that it is even more affected but then as you get closer to Darwin the signal improves and is more robust even in wet weather. Happy travels.

      R
      Russell
      Promax Performance

      Russ,

      Great to have a chat today and to receive the positive feedback about the great performance of the Promax on your trip across the Nullarbor plain to NSW and up through western QLD and down the middle of Australia.

      As mentioned on the phone if you could let me know when you travelled and stopped roughly at each location and that you were watching all channels in these locations. This would be great feedback for other potential Promax customers and we would place this on our website. A picture of your van in one of these locations (great if you could see the Promax in the pic if possible, but it is ok if not) would be placed with the post.


      REPLY BELOW

      Our travels started in Perth over the nullabor Through S Aust to Broken Hill.From there over to Willcania then on the dirt up the west road following the Darling River.From there to Bourke  then over the border to Cunnamulla.From there east to Brisbane.
      After Brissy we travelled to Roma then up towards Emerald.Through to Longreach Winton and on to Mount Isa.
      From Mt Isa we headed to the border at Camowheel and onto Barkley roadhouse and 3 ways to the Stuart hwy. to head to Alice Springs.
      After a stay at Alice we headed to yalara or Ayres Rock After that we tackled the longest short cut in Australia on the Great Central Road to Laverton in W A.
      This road is about 1200 ks in length through the Gibson desert.Len Beddels country.We passed through the communities od Docker River Warakurna Warburton Tjukayirla to Laverton

      G
      Grahame Brown
      Top Unit

      Fitted the satking to last motorhome,had no trouble and impressed with whole setup mainly in Carnarvon were I could get reception but the guy behind me with his 5k sat was not getting a solid lock,will be buying another one for our latest motorhome. grahame 0417430649

      Related Products

      QUESTIONS & ANSWERS

      Ask a Question
      • Dear David, We have limited space on our caravan roof due to height problem with our garage door. Can you please tell me the height of the unit from the roof to the top when closed down? Paul Harris

        Hi,

        When closed, the unit is 25cm from the roof.

        Regards,

        Philip

      • How does the coverage areas of the Promax compare with other auto satellite dishs eg oyster or sphere? Paul

        Hello Paul,

        Good question.  SatKing have worked with the South Korean manufacturer to fine tune the Promax so that it locks on in some of the worst satellite signal areas in Australia.  The worst areas are North Western WA Kimberley region, Kununnurra and inland south of there as well as select areas of Central Australia and Northern QLD.  Have a look at the Optus coverage map listed on our website here - https://www.satplus.com.au/collections/roof-mounted-satellite-systems/products/satking-promax-automatic-satellite-dish


        Over the years we have sold many automatic systems across three brands and all three have had issues locking on in parts of Australia. The Promax, like the Oyster have the added advantage over the Sphere of being able to be finely tuned in poor signal areas.  So, if you are experiencing a lot of picture break up you can enter the manual tuning mode and improve the signal quality.  This is a definite advantage.  The Promax features GPS for faster signal lock and auto shut down if the van moves over 10 kph so this is a nice feature.  Whereas the Oyster and Sphere need to be connected to an ignition source if you want auto shut down should you forget to close the dish and this is not always possible in a caravan.

        There can be no doubt though that the Oyster with its large 85cm reflector and the ability to select a location close to you within the menu should enable it to outperform the Promax but this would only apply in these lower signal areas as per the map.  In most locations, the Promax will provide exceptional performance and offer reliable service.

        An added benefit of the Promax over ALL roof mounted satellite dishes os the wind load. In moderate winds, most traditional systems should be closed whereas the Promax is unaffected.

        The Promax is also heavier than traditional systems but less space required too.  SatKing have been communicating with a customer who has been travelling in very remote WA and the system has been working well.  Areas travelled by customer are below.  However, we still are reserved and prefer to state 95% coverage of land mass with low or no coverage in some spots.

        Kununurra WA Halls Creek WA Fitzroy Crossing WA Albany WA Eighty Mile Beach WA Various Roadside camps WA Port Headland WA Karratha WA Currently in Carnarvon WA and now travelling to Tom Price and back to the NT.   She had all channels in all locations, just one roadside camp that had lots of big trees and the unit would not lock.


        Regards

        John - SatPlus Australia

      • Can I install myself

        Hi there,

        The Satking Promax satellite system can be easily installed yourself.  The system comes complete with a circular aluminium plate and is easily glued to the roof using Sikaflex Marine (white).  Cables are then routed across the roof and in through an overhead cupboard down to where the control box and satellite decoder will be located.


        Cheers

        John

      • dear sir how much does this weigh.thankyou Dave Thomas.

        Hello David,

        The SatKing Promax weighs 20KG on the roof.  It would be best to mount it near the edge of the van for extra strength or over the internal wall of the ensuite (if applicable).

        Cheers

        John

      • Do trees interfere with reception ? If yes can I still us my portable dish ? What is the cost of a UEC DSD 4921 RV PVR

        Hi there, yes trees still affect an automatic dish just like a portable one.  One benefit of the auto is the height so hopefully more chance of getting clear of nearby trees.  The Altech 4921 price can be found here - https://www.satplus.com.au/products/altech-4921-rv-vast-certified-decoder-home-or-caravan-use?variant=31261739253895

        Cheers

        John

      • Can the Promax replace a winegard aerial? ie, on the same roof bracket? Or does it need its own fitting?

        Hi Anthony,

        The Promax comes with its own mounting plate and coaxial cable so if you are planning on removing the Winegard then leave the internal handle mechanism intact and remove the external antenna only then the plate will cover this,  Most people leave the antenna there and install the Promax separate to this.  It is fairly compact so you should be able to fit it somewhere.

        Regards

        John

      • Hi would the pro max work Ihave an altech 4121 decoder

        Hi there, Yes if you have the Altech decoder then it will work with the Promax. Regards John

      • Hi, we have 2 stb's in our van. One has 2 coax cables, the other has 1, is it posible to connect them to the promax . Regards

        Hi there and very sorry for the late reply.  I gather you're referring to the Foxtel IQ box.  Yes, with the use of a multiswitch you can connect multiple decoders to the Promax.  We're happy to include the Multiswitch at no extra charge.   Cheers   John
