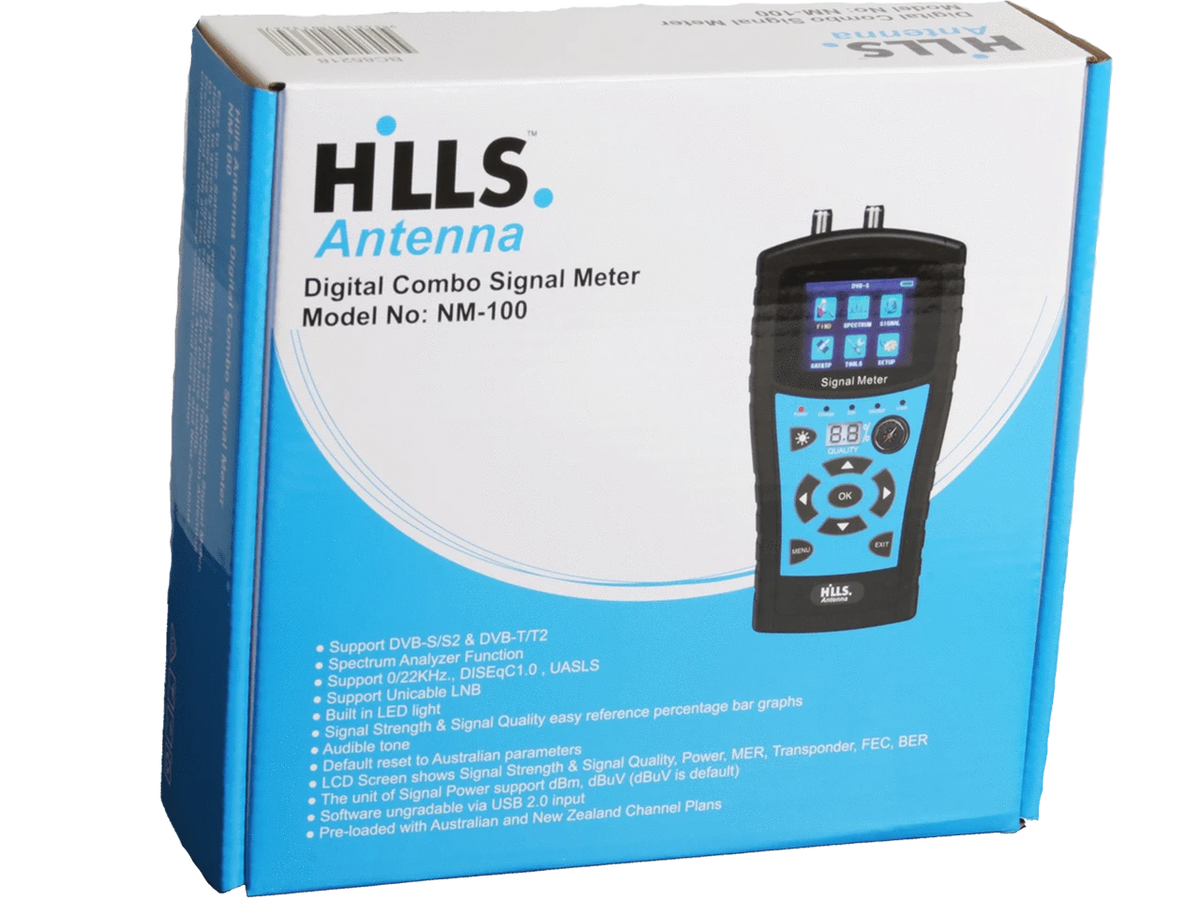

Hills NM-100 Satellite & Terrestrial TV Signal Meter

Save $105.00

Price:
Sale price$394.00 Regular price$499.00

Description

TV Antenna Tester and Satellite Signal Meter

The Hills NM-100 combines terrestrial TV antenna testing and satellite dish alignment in one digital signal meter. It is suitable for antenna installers, satellite technicians and electricians checking television reception.

Check Reception During Installation

Monitor signal strength and quality while adjusting an antenna or satellite dish. The meter provides readings that help assess reception and investigate signal problems.

One Meter for Two Applications

Use the NM-100 when your work includes both terrestrial television antennas and satellite dishes. Review the specifications below to check suitability for your installation.

Specifications

  • Model Number: NM-100
  • Frequency Range: 47-862 MHz (Terrestrial), 950-2150 MHz (Satellite)
  • Input Level Range: 40-100 dBµV
  • Power Supply: 13-18V DC via coax or internal rechargeable Ni-MH battery
  • Display: LCD with backlight

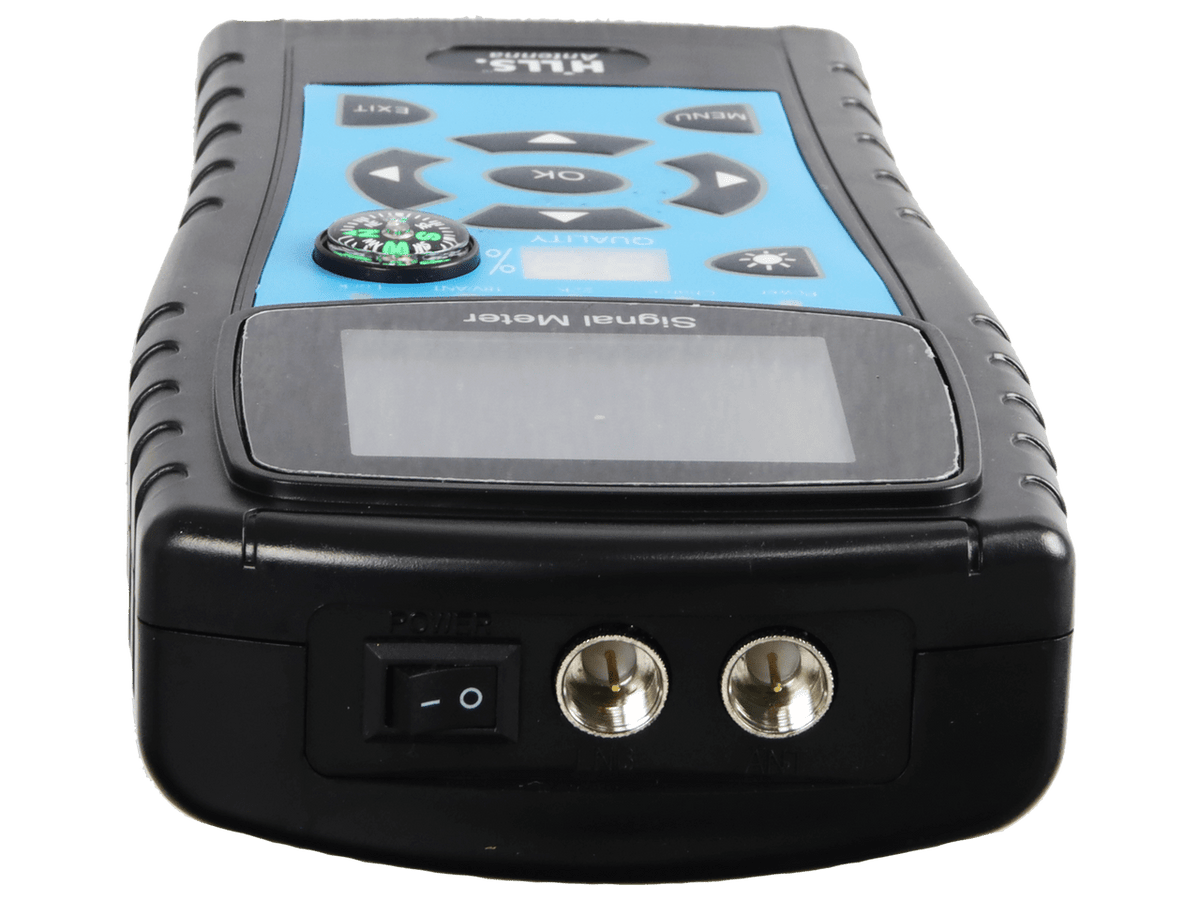

  • Ports: F-Type connectors
  • Features: Signal strength & quality measurement, BER (Bit Error Rate), MER (Modulation Error Ratio), constellation diagram, spectrum analyzer
  • Accessories Included: Carry case, charger, car charger, coax adapters
