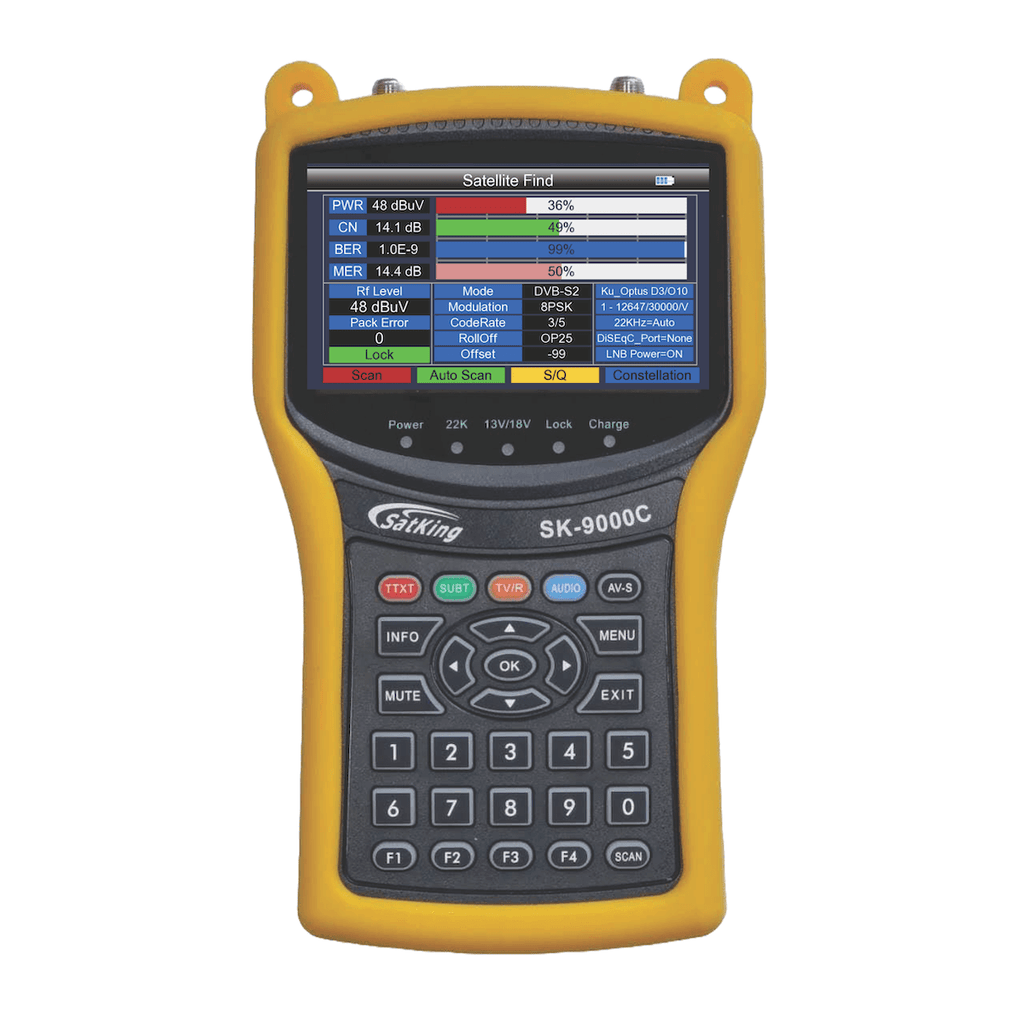

SatKing SK-9000C Satellite and Terrestrial TV Signal Meter
The SatKing SK-9000C combines a digital satellite meter and terrestrial TV antenna meter in one rechargeable handheld unit. Designed for antenna installers, electricians and satellite technicians, it provides signal measurements for dish alignment, antenna installation and reception troubleshooting.
Its 4.3-inch colour LCD displays signal level, MER, BER and carrier-to-noise readings. MPEG-2 and MPEG-4 support also allows live picture and sound from supported, unencrypted television channels, helping you assess reception directly at the installation point.
Satellite Dish and TV Antenna Testing
Use the SK-9000C to align satellite dishes and measure terrestrial television signals with one instrument. Signal level readings show the received strength, while MER, BER and carrier-to-noise measurements provide more detail about signal quality.
Selectable antenna power supports masthead amplifiers, making the meter useful for testing amplified TV antenna installations.
Rechargeable Meter for Installation Work
The built-in 3000mAh lithium-ion battery provides portable operation. Backlit menu buttons and an integrated torch assist when working in low light, while the colour screen and built-in speaker provide picture and audio monitoring.
HDMI and AV outputs offer additional monitoring connections, and the USB port supports multimedia functions.
CCTV Video Monitoring
The AV input and supplied cable allow you to view compatible analogue camera video when positioning or testing a camera. The selectable CCTV power output supplies 12V at up to 100mA for cameras within that rating.
Key Features
-
Combined satellite and terrestrial TV signal meter.
-
4.3-inch colour LCD screen.
-
High-definition, MPEG-2 and MPEG-4 support.
-
Signal level readings in dBµV.
-
MER, BER and carrier-to-noise measurements.
-
Live picture and sound from supported, unencrypted TV channels.
-
Built-in speaker.
-
Rechargeable 3000mAh lithium-ion battery.
-
Selectable antenna power for masthead amplifiers.
-
HDMI output.
-
AV input for compatible analogue CCTV video.
-
AV output.
-
Selectable 12V CCTV power output, rated at 100mA.
-
Backlit menu buttons.
-
Built-in torch.
-
USB multimedia functions.
